Functional medical strength training
MADE IN GERMANY


The compass series of devices has been an established label in the field of high-quality training therapy for over 20 years. These training/therapeutic devices are used across the world, helping therapists work on and with their patients.

The compass 600 range of devices was conceived for use in rehabilitation and specially for people with physical impairments. These space-efficient combination devices can be put together to form a medical training circuit even in small rooms.

So that older patients can also work well with the equipment, the compass 600 devices can be optionally fitted with an additional weight, meaning weight increases of 1 to 2kg are possible. Minimal need for adjustment optimises the process of using the devices and saves time for more patients. The start position can usually be set from the training position. isometric strength measurement can be compared with the maximum strength measurement. The devices are designed for people from 140 to 210cm in height. With user weights from 200 to 250kg, overweight patients can also use the devices.

Integration in training control – optional software

compass 600 offers a comprehensive range of fully biomechanically developed strength training devices: they can be individually adjusted, are user friendly and are suitable for all target groups.

Fitted with the “SmartPanel” touchscreen, RFID or a chip card unit and proxotrain software, all compass 600 devices allow strength tests and software-controlled feedback training. These can be used on all eight combination devices. Via the integrated network connection, the system can be networked with the therapist workstation (proxOS station).

Position sensor system (optional)

The proxomed position sensor system enables quick and easy device settings on the proxomed compass 600 sequence training devices.

The device settings are displayed and automatically saved in the smart assist during the first test or training after correct patient positioning via infrared sensors.

During the next training session, these saved positions are displayed in the smart assist, if the device setting is correct, it is confirmed by a green tick and the training can begin with the next step.

Individual curve

The proxomed individual curve enables the combination of dynamic movements with isometric holding phases. The training can be performed in 4 variations:

Without isometric holding phase (sinus)

The concentric and eccentric movements are performed in succession at any speed without an isometric phase.

Isometric hold phase above

The concentric movement is followed by the isometric phase, then the eccentric movement and the next concentric movement.

Isometric hold phase down

The concentric movement is followed by the eccentric movement with subsequent isometric phase and the next concentric movement.

Isometric hold phase top & bottom (trapeze)

The concentric movement is followed by the isometric phase, then the eccentric movement followed by the next isometric phase, the so-called trapezoidal curve.

  • The speed of the dynamic movements can be selected from 0.5-6 seconds in 0.1 second increments. The duration of the isometric phases is selectable from 0.5-6 seconds in 0.5 second increments.
  • The aim of using these load combinations is to achieve a high muscular workload with the lowest possible intensity/weight in order to spare affected structures.
  • Isometry can be performed in the desired joint angle position.

compass 600 products

Illustration including optional equipment

Leg Press

Item No. 10610600

Specification

  • Strength training for legs and calves
  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • smart assist for training control
  • Integrated RFID or chip card system
  • Visual feedback strength training with individual curves
  • Ultrasonic sensors for weight detection
  • 0 to 168 kg training weight with 2 kg step increments
  • Reproducible scaled positioning
  • Start position adjustment from the training position
  • Backrest inclination adjustment in 10° steps
  • Stepless shoulder pads adjustment
  • 4-step adjustable foot plate
  • Easy access design
  • High quality linear guide of the seat slide
  • Weight block cover for protection
  • Dimensions (L/W/H): 113/247-313/184 cm
  • Total weight block: 160 kg (16 x 10 kg)
  • Total weight: up to 622 kg
  • User weight: max. 200 kg
  • smart assist ISO
  • Balance board
  • Position and pulse sensor
  • Range of motion limiter
  • Left/right footrest for single-leg training
  • Hanging system for injured leg
  • 200 kg weight block (20 x 10 kg)
  • Lordosis pad

Illustration including optional equipment

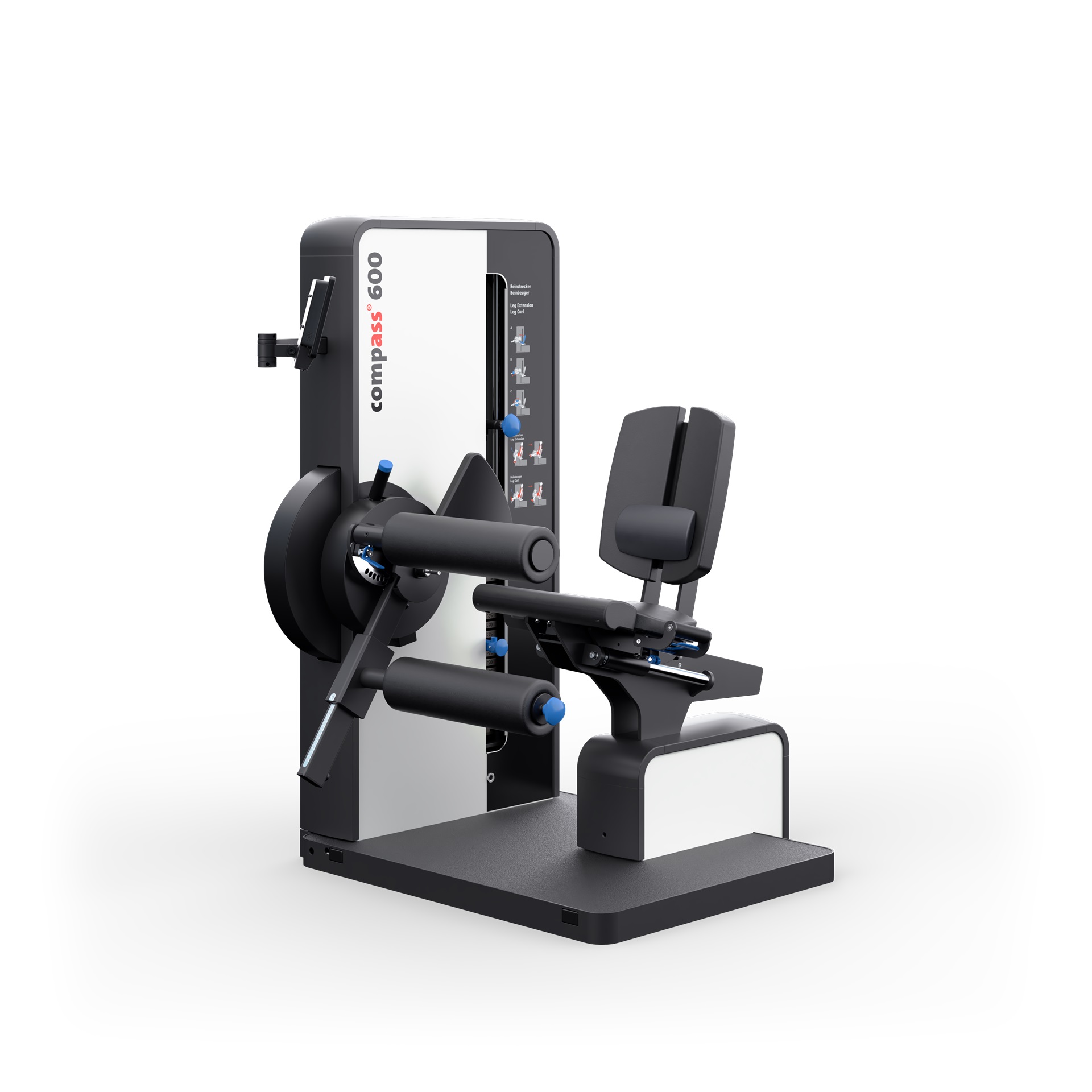

Leg Extension/Curl

Item No. 10689500

Specification

  • Strength training for legs
  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • smart assist for training control
  • Integrated RFID or chip card system
  • Visual feedback strength training with individual curves
  • Ultrasonic sensors for weight detection
  • 0 to 84 kg training weight with 1 kg step increments
  • Reproducible scaled positioning
  • Start position adjustment from the training position
  • Stepless lever arm length adjustment
  • Stepless seat depth adjustment
  • Knee fixation adjustment
  • Laser pointer for optimal positioning
  • Weight block cover for protection
  • Dimensions (L/W/H): 113/132-148/165 cm
  • Total weight block: 80 kg (16 x 5 kg)
  • Total weight: up to 412 kg
  • User weight: max. 200 kg
  • smart assist ISO
  • Position and pulse sensor
  • Range of motion limiter
  • Laser pointer for optimal positioning
  • 100 kg weight block (20 x 5 kg)
  • Lordosis pad

Illustration including optional equipment

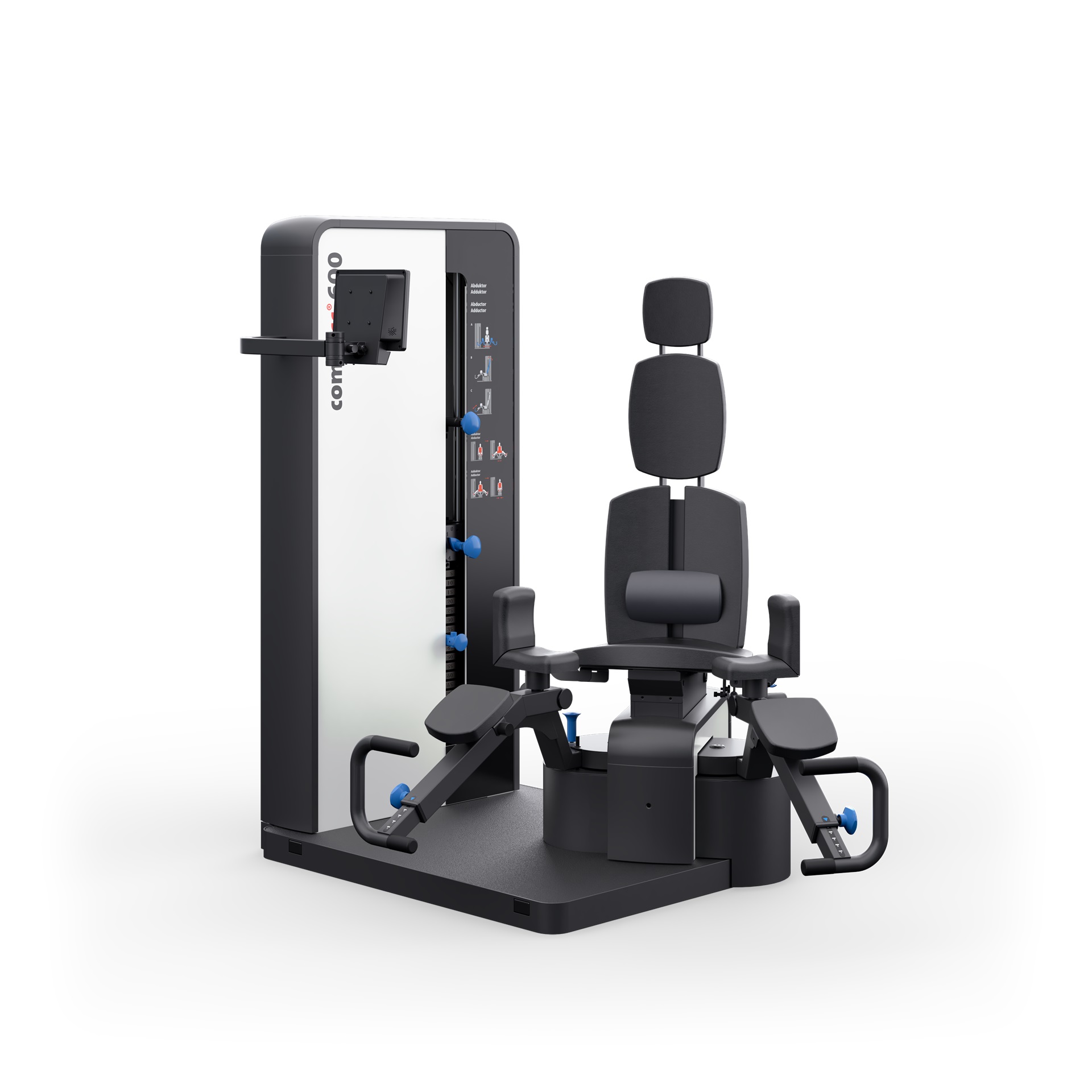

Ab-/Adduction

Item No. 10609000

Specification

  • Strength training for hips
  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • smart assist for training control
  • Integrated RFID or chip card system
  • Visual feedback strength training with individual curves
  • Ultrasonic sensors for weight detection
  • 0 to 84 kg training weight with 1 kg step increments
  • Reproducible scaled positioning
  • Start position adjustment from the training position
  • Stepless backrest adjustment
  • Knee support pad adjustment for both adduction and abduction
  • Foot support bar adjustment
  • Weight block cover for protection
  • Dimensions (L/W/H): 141-205/110-180/165 cm
  • Total weight block: 80 kg (16 x 5 kg)
  • Total weight: up to 384 kg
  • User weight: max. 200 kg
  • Position and pulse sensor
  • Range of motion limiter
  • Foot support bar adjustment
  • 100 kg weight block (20 x 5 kg)
  • Lordosis pad

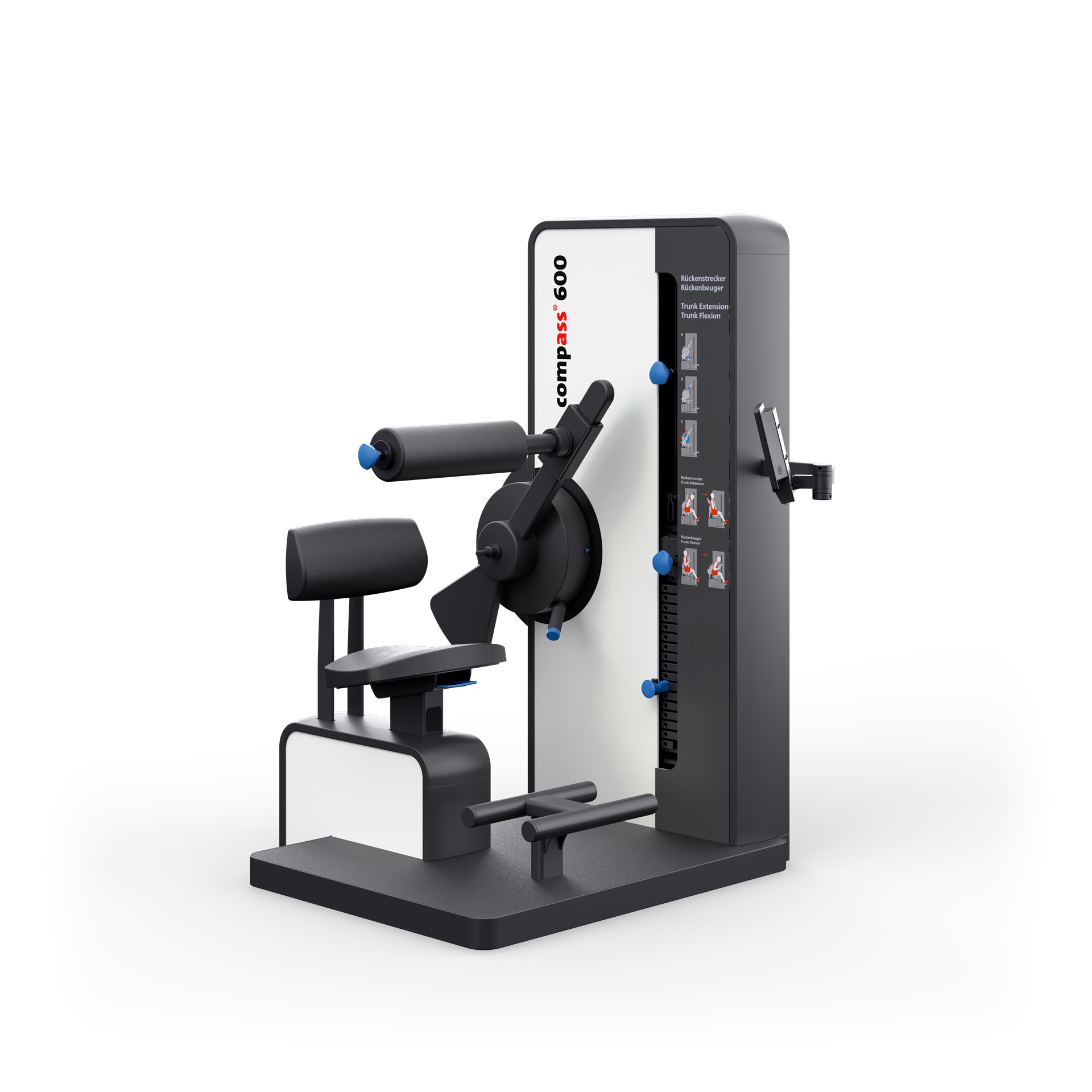

Trunk Extension/Flexion

Item No. 10692100

Specification

  • Strength training for trunk
  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • smart assist for training control
  • Integrated RFID or chip card system
  • Visual feedback strength training with individual curves
  • Ultrasonic sensors for weight detection
  • 0 to 84 kg training weight with 1 kg step increments
  • Reproducible scaled positioning
  • Start position adjustment from the training position
  • Stepless lever arm adjustment
  • Stepless seat height adjustment
  • 2 steps foot bar
  • Laser pointer for optimal positioning
  • Weight block cover for protection
  • Dimensions (L/W/H): 113/111-165/165 cm
  • Total weight block: 80 kg (16 x 5 kg)
  • Total weight: up to 378 kg
  • User weight: max. 200 kg
  • smart assist ISO
  • Position and pulse sensor
  • Range of motion limiter
  • Laser pointer for optimal positioning
  • 100 kg weight block (20 x 5 kg)

Butterfly/Butterfly Reverse

Item No. 10610700

Specification

  • Strength training for chest and back
  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • smart assist for training control
  • Integrated RFID or chip card system
  • Visual feedback strength training with individual curves
  • Ultrasonic sensors for weight detection
  • 0 to 84 kg training weight with 1 kg step increments
  • Reproducible scaled positioning
  • Start position adjustment from the training position
  • Variable grip positions
  • Stepless seat height adjustment
  • 2 steps foot bar
  • Two or one arm exercise execution
  • Lever arm width adjustment
  • Weight block cover for protection
  • Dimensions (L/W/H): 123-139/164/165 cm
  • Total weight block: 80 kg (16 x 5 kg)
  • Total weight: up to 398 kg
  • User weight: max. 200 kg
  • Position and pulse sensor
  • Range of motion limiter
  • 100 kg weight block (20 x 5 kg)
  • Lordosis pad

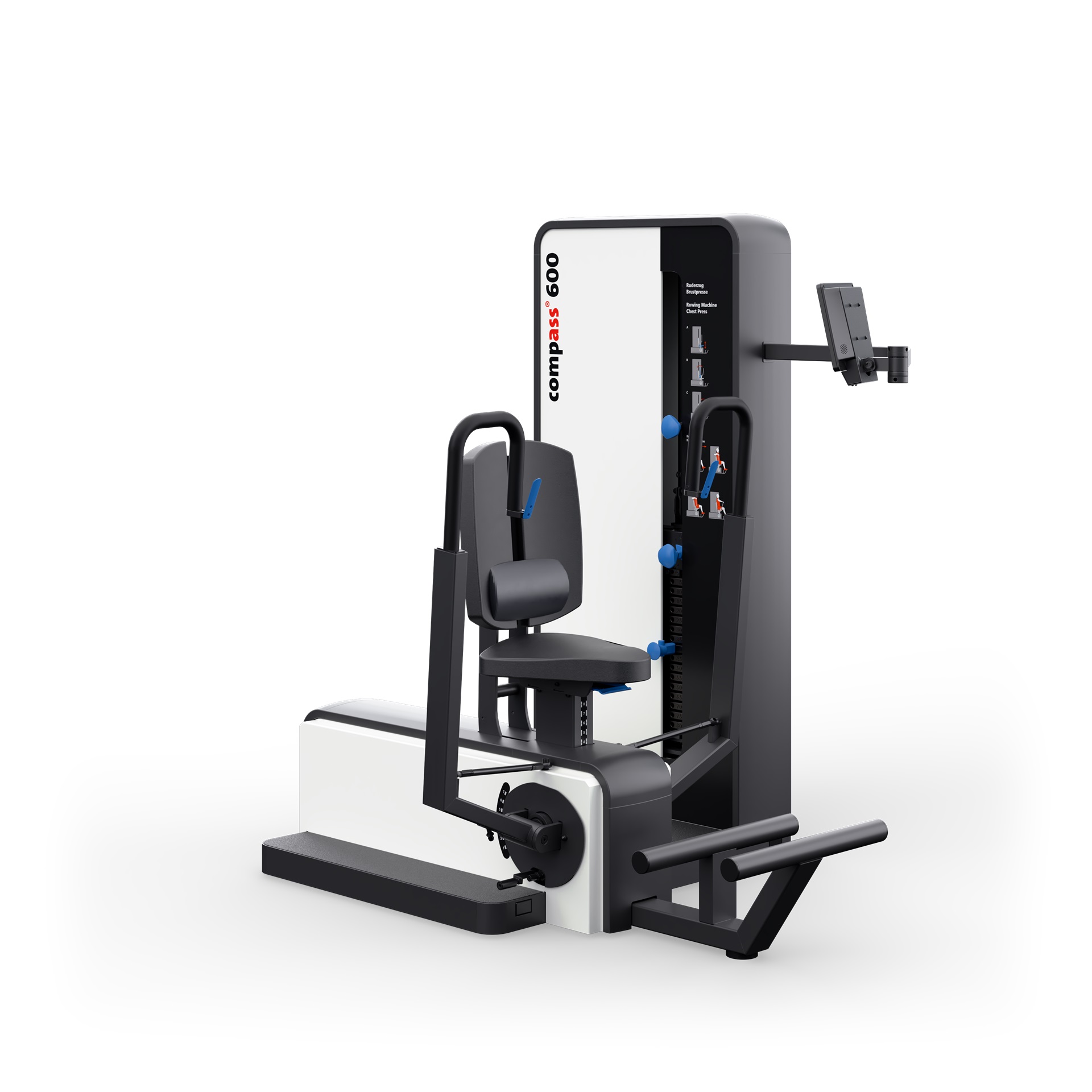

Chest Press/Rowing

Item No. 10645400

Specification

  • Strength training for chest and back
  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • smart assist for training control
  • Integrated RFID or chip card system
  • Visual feedback strength training with individual curves
  • Ultrasonic sensors for weight detection
  • 0 to 84 kg training weight with 1 kg step increments
  • Reproducible scaled positioning
  • Start position adjustment from the training position
  • Stepless seat height adjustment
  • 2 steps foot bar
  • Two or one arm exercise execution
  • Contralateral stabilization training
  • Weight block cover for protection
  • Dimensions (L/W/H): 136/161/165 cm
  • Total weight block: 80 kg (16 x 5 kg)
  • Total weight: up to 384 kg
  • User weight: max. 200 kg
  • Position and pulse sensor
  • Range of motion limiter
  • 100 kg weight block (20 x 5 kg)
  • Lordosis pad

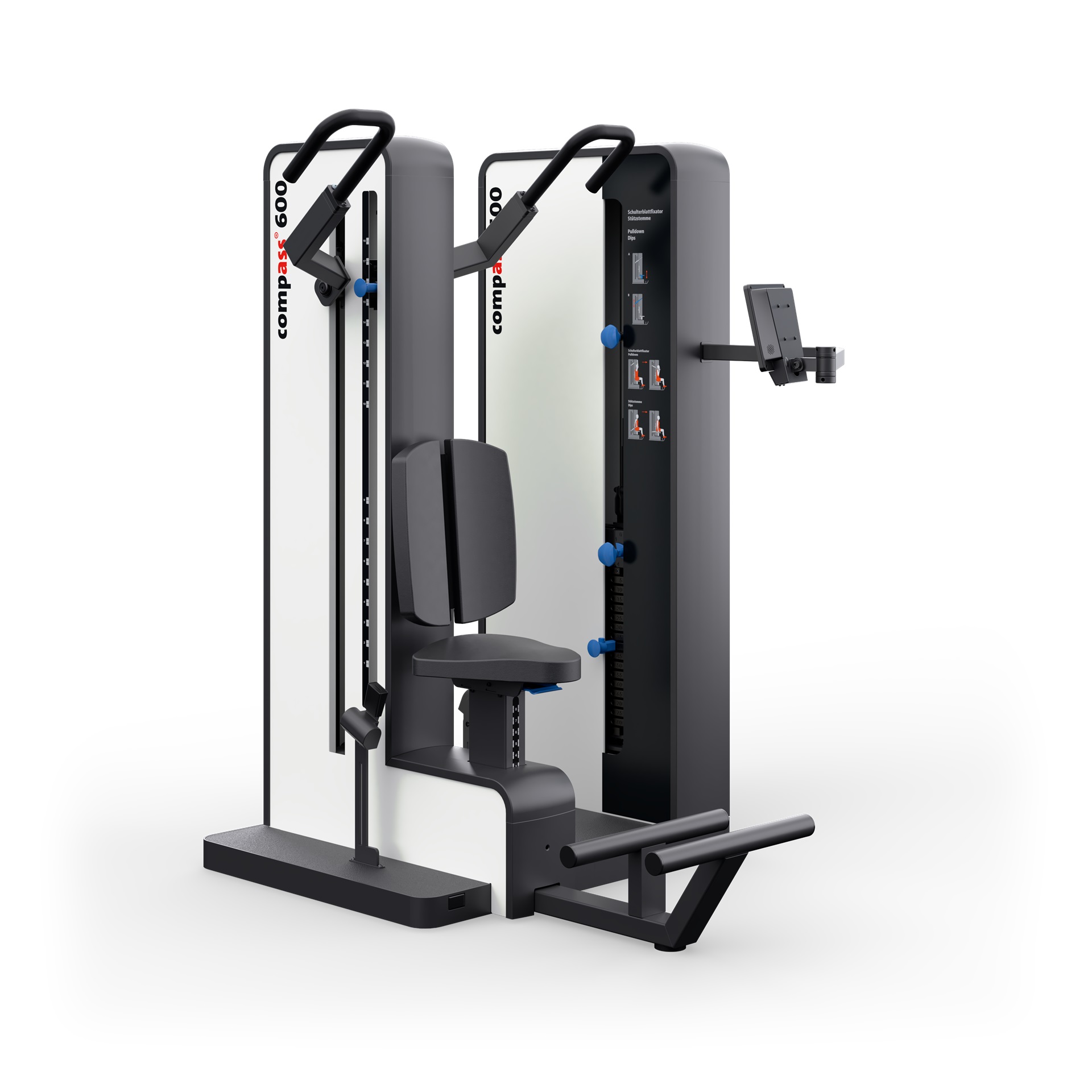

Pulldown/Dip

Item No. 10610900

Specification

  • Strength training for shoulders and arms
  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • smart assist for training control
  • Integrated RFID or chip card system
  • Visual feedback strength training with individual curves
  • Ultrasonic sensors for weight detection
  • 0 to 168 kg training weight with 2 kg step increments
  • Reproducible scaled positioning
  • Stepless seat height adjustment
  • 2 steps foot bar
  • Two or one arm exercise execution
  • Flexible grip positions for exercise variations
  • Weight block cover for protection
  • Dimensions (L/W/H): 134/154/184-201 cm
  • Total weight block: 160 kg (16 x 10 kg)
  • Total weight: up to 500 kg
  • User weight: max. 200 kg
  • smart assist ISO
  • Position and pulse sensor
  • Range of motion limiter
  • Stabilization belt for isometric measurement
  • 200 kg weight block (20 x 10 kg)
  • Lordosis pad

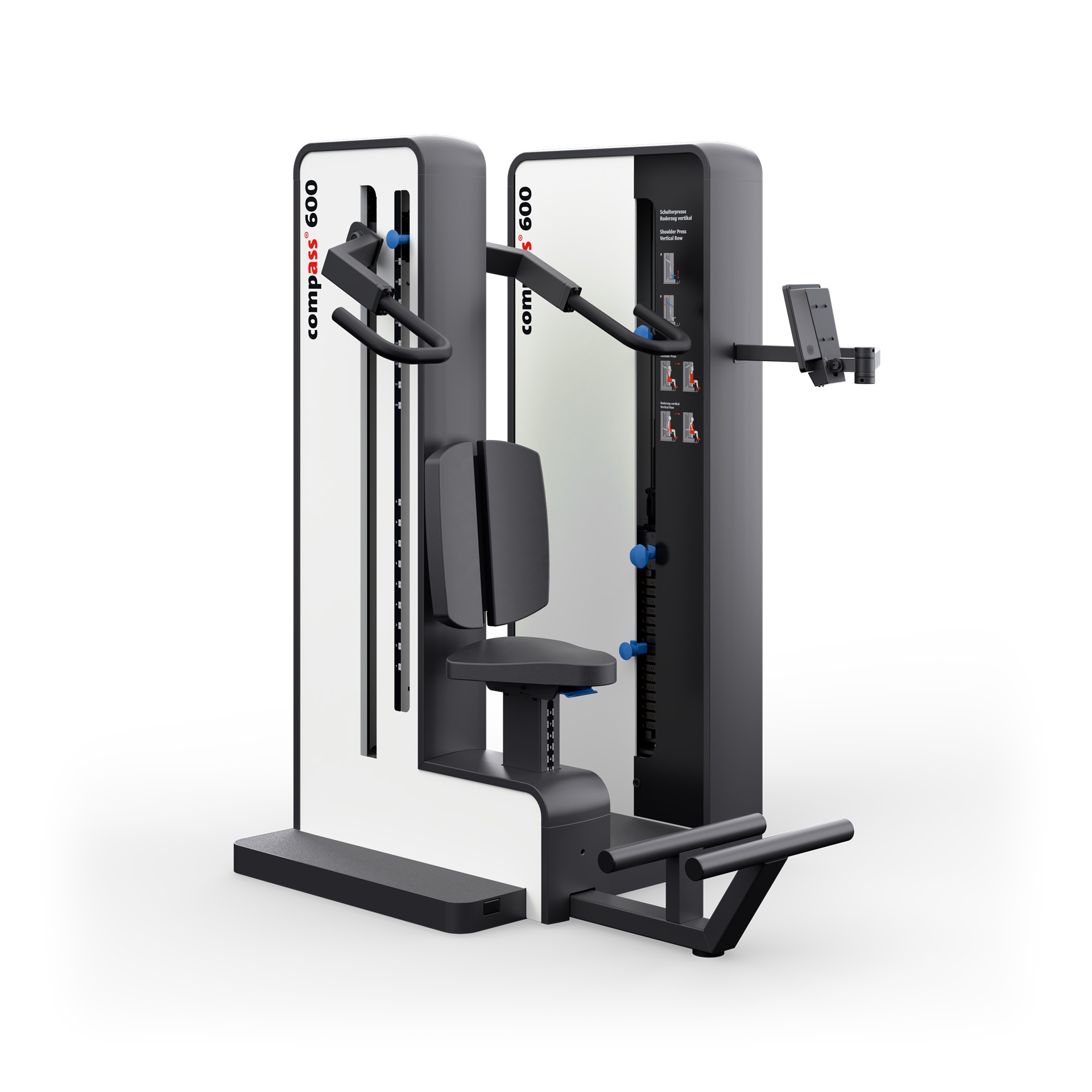

Shoulder Press/Vertical Rowing

Item No. 10610800

Specification

  • Strength training for shoulders and arms
  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • smart assist for training control
  • Integrated RFID or chip card system
  • Visual feedback strength training with individual curves
  • Ultrasonic sensors for weight detection
  • 0 to 84 kg training weight with 1 kg step increments
  • Reproducible scaled positioning
  • Stepless seat height adjustment
  • 2 steps foot bar
  • Two or one arm exercise execution
  • Flexible grip positions for exercise variations
  • Weight block cover for protection
  • Dimensions (L/W/H): 134/154/184-201 cm
  • Total weight block: 80 kg (16 x 5 kg)
  • Total weight: up to 388 kg
  • User weight: max. 200 kg
  • Position and pulse sensor
  • Range of motion limiter
  • 100 kg weight block (20 x 5 kg)
  • Lordosis pad

For all compass 600 devices

smart assist

Item No. 10629100

Specification

  • Intuitive operator guidance via an 8" touchscreen monitor
  • Quick start/power training without using RFID or chip card
  • RFID/chip card reader
  • Medical LAN Isolator
  • Sinual feedback training
  • Range of motion test to determine the physiological amplitude of motion
  • Submaximal testing according to the repetition method, supplemented by an objective assessment of the quality of the test and the subjective assessment of the degree of exertion by the test person using the RPE scale
  • Position sensors for simple, reproducible positioning during testing and training
  • Pulse receiver uncoded

For compass 600 Leg press, Leg Extension/Curl, Trunk Extension/Flexion, Pulldown/Dip

smart assist ISO

Item No. 10629200

Specification

  • Intuitive operator guidance via an 8" touchscreen monitor
  • Quick start/power training without using RFID or chip card
  • RFID/chip card reader
  • Medical LAN Isolator
  • Sinual feedback training
  • Isometry for comparative measurement of the maximum force
  • Range of motion test to determine the physiological amplitude of motion
  • Submaximal testing according to the repetition method, supplemented by an objective assessment of the quality of the test and the subjective assessment of the degree of exertion by the test person using the RPE scale
  • Isometric test for measuring maximum strength using the 1 repetition method
    • A procedure that is carried out under expert guidance
    • The test data are documented in the proxotrain training and planning software
  • Position sensors for simple, reproducible positioning during testing and training
  • Pulse receiver uncoded

proxotrain

Item No. 10184120

Specification

  • Planning and control of strength and endurance training
  • Comprehensive documentation of test and training results
  • Test/retest comparison
  • Right/left comparison
  • Agonist/antagonist comparison
  • Automated, progressive training planning
  • Notice of ongoing training plans
  • Message function to the patient in connection with the Infopoint

proxOS Station

Item No. 10151100

Specification

  • Rollable computer trolley with integrated power strip for the therapist's workstation (TAP)
    • 22" TFT monitor
    • RFID or chip card reader
    • Computer
    • Printer
    • Wireless keyboard
    • Wireless mouse
  • Dimensions without monitor (L/W/H): 60/60/103 cm
  • Dimensions with monitor (L/W/H): 70/70/145 cm
  • Total weight: 40 kg (without computer and printer)

Infopoint

Item No. 10184150

Specification

  • Automated process of documentation of training results
  • 19" touchscreen monitor
  • RFID or chip card reader
  • Dimensions (L/W/H): 48/21/39 cm
  • Total weight: 12 kg

Workoutpoint Stand

Item No. 14103500

Specification

  • Colored, high-resolution 8“ touchscreen
  • To carry out targeted functional movement training
  • Independent patient use
  • > 170 functional exercises from the areas of strengthening, stretching, coordination and flexibility
  • Free exercises are displayed via short video incl. short description
  • Use in conjunction with the proxotrain software
    • To implement a planned training with RFID or chip card
    • The results of the exercises are read into the proxotrain software with documentation after the end of the training
  • Dimensions (L/W/H): 46/52/122 cm
  • Total weight: 25 kg

Workoutpoint Wall

Item No. 14111500 (RFID)

Specification

  • Colour, high-resolution 21.56" touchscreen monitor with flexible wall mount
  • To carry out targeted functional movement training
  • Independent patient use
  • > 170 functional exercises from the areas of strengthening, stretching, coordination and flexibility
  • Free exercises are displayed via short video incl. short description
  • Use in conjunction with the proxotrain software
    • To implement a planned training with RFID or chip card
    • The results of the exercises are read into the proxotrain software with documentation after the end of the training
  • Dimensions (L/W/H): 5,5/50/33 cm
  • Total weight: 5 kg

On the safe side!
The devices of the compass 600 line are tested safety in accordance with the European Medical Device Regulation (MDR).

compass 600 advantages in overview

Your benefits


  • Safe, guided medical strength training for all large muscle groups

For your needs


  • Multifaceted training, ease of use
  • Space saved thanks to eight combination devices
  • Flexible design for bodies from 140 to 210 cm in height
  • Optimal biomechanical patient positioning
  • Visual feedback training

Special product features


  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • User-friendly thanks to “Easy Blue Pins” adjustment aids
  • Fine weight gradations of 1 or 2 kg (optional)
  • Quality evaluation of training in the concentric and eccentric phase
  • Intuitive user interface via touchscreen monitor
  • Documentation of test and training using proxotrain software (optional)
  • Progressive training plan adjustment on the basis of subjective experience of load

Do you have questions about our products, or would you like to arrange a date for personal consultation?

Other products

 itensic

Targeted functional training of the deep muscles
