The compass series of devices has been an established label in the field of high-quality training therapy for over 20 years. These training/therapeutic devices are used across the world, helping therapists work on and with their patients.
Time for our new compass 540 line with an optimal selection of medical equipment for training the upper and lower extremities as well as the back. This give users and patients the range they need for their own individualised training. Robust and user-friendly – a safe investment.
- Price-performance: Excellent
- Multipurpose: Use for prevention, rehabilitation, geriatrics, professional sports
- Time- and space-saving: Additional combination units
- Customer-friendly: Large selection of equipment
- Made in Germany: Quality and equipment
- Individualisable: Adaptation to the patient for effective training
- Networkable: Optional integration into the training control system
- Certificate: Meets medical device requirements
To protect your personal data, your connection to the video streaming provider has been blocked. Click to unblock the video streaming provider. By loading the video you accept the video streaming provider’s privacy policy. More information about the video streaming provider’s privacy policy can be found here: Google - Privacy & Terms
Integration in training control – optional software
compass 540 offers a comprehensive range of fully biomechanically developed strength training devices: they can be individually adjusted, are user friendly and are suitable for all target groups.

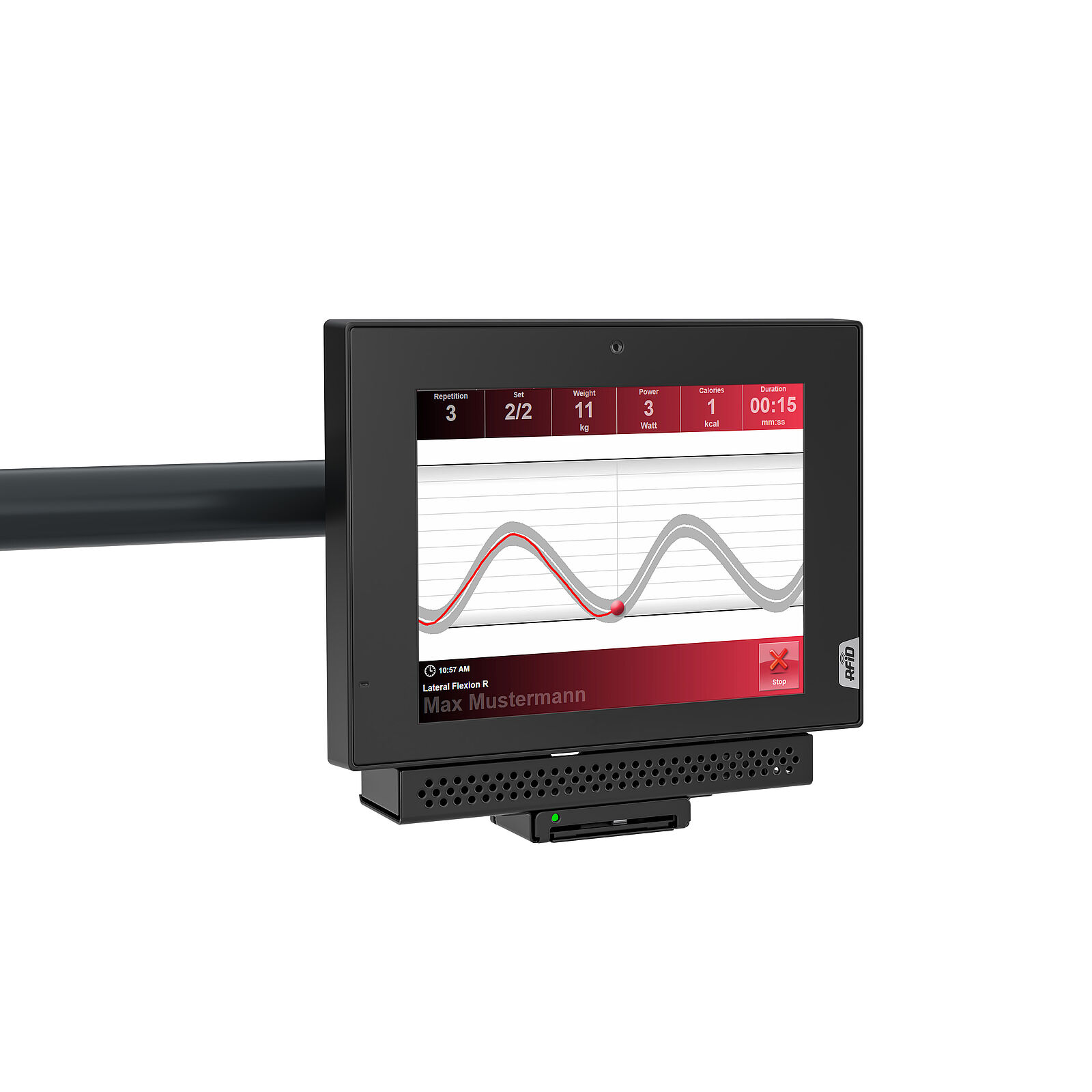

Fitted with the smart assist touchscreen, RFID or a chip card unit and proxotrain software, all compass 530 devices allow strength tests and software-controlled feedback training. These can be used on as many devices as desired.
- The speed of the dynamic movements can be selected from 0.5-6 seconds in 0.1 second increments. The duration of the isometric phases is selectable from 0.5-6 seconds in 0.5 second increments.
- The aim of using these load combinations is to achieve a high muscular workload with the lowest possible intensity/weight in order to spare affected structures.
- Isometry can be performed in the desired joint angle position.
compass 540 products
Leg Press
Item No. 10699600
Specification
- Strength training for legs and calves
- Tested safety in accordance with the European Medical Device Regulation (MDR)
- 0 to 160 kg training weight with 10 kg step increments
- Reproducible scaled positioning
- Start position adjustment from the training position
- 8-step adjustable inclination of the backrest for lying and sitting training position
- Stepless adjustment of shoulder pads
- 4-step adjustable foot plate
- Darth frost cover with surface for storage
- Training panel with smart operating information on the device

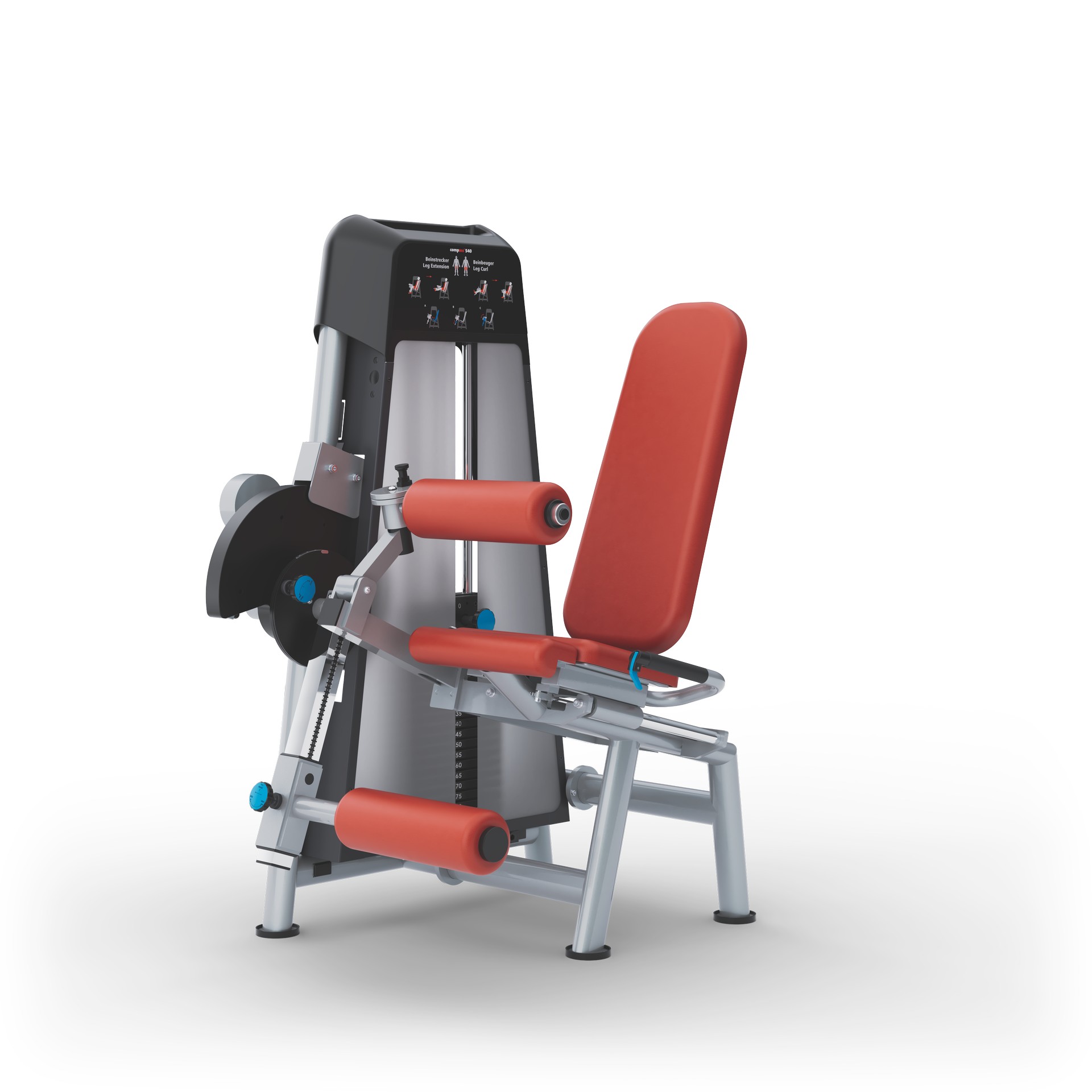

Leg Extension/Curl
Item No. 10700700
Specification
- Strength training for legs
- Tested safety in accordance with the European Medical Device Regulation (MDR)
- 0 to 80 kg training weight with 5 kg step increments
- Reproducible scaled positioning
- Start position adjustment from the training position
- Stepless lever arm length adjustment
- Stepless seat depth adjustment
- Knee fixation adjustment
- Stepless thigh support adjustment
- Darth frost cover with surface for storage
- Training panel with smart operating information on the device
Ab-/Adduction
Item No. 10701400
Specification
- Strength training for hips
- Tested safety in accordance with the European Medical Device Regulation (MDR)
- 0 to 80 kg training weight with 5 kg step increments
- Reproducible scaled positioning
- Stepless backrest adjustment
- Knee support pad adjustment for both adduction and abduction
- Darth frost cover with surface for storage
- Training panel with smart operating information on the device
Multi Hip
Item No. 10705800
Specification
- Strength training for hip extension, flexion, ab-/adduction in standing position
- Tested safety in accordance with the European Medical Device Regulation (MDR)
- 0 to 80 kg training weight with 10 kg step increments
- Reproducible scaled positioning
- Start position adjustment from the training position
- Height-adjustable foot plate
- Stepless pelvic stabilisation pad adjustment
- Lever arm length adjustment
- Darth frost cover with surface for storage
- Training panel with smart operating information on the device
Hip Extension
Specification
- Strength training for hips
- Tested safety in accordance with the European Medical Device Regulation (MDR)
- 0 to 80 kg training weight with 5 kg step increments
- Reproducible scaled positioning
- Height-adjustable forearm rest for upper body stabilization
- Darth frost cover with surface for storage
- Training panel with smart operating information on the device
Trunk Extension/Flexion
Item No. 10699700
Specification
- Strength training for trunk
- Tested safety in accordance with the European Medical Device Regulation (MDR)
- 0 to 80 kg training weight with 5 kg step increments
- Reproducible scaled positioning
- Start position adjustment from the training position
- Stepless lever arm adjustment
- Seat height adjustment
- Foot bar
- Darth frost cover with surface for storage
- Training panel with smart operating information on the device
Trunk Rotation
Item No. 10701900
Specification
- Strength training for trunk
- Tested safety in accordance with the European Medical Device Regulation (MDR)
- 0 to 80 kg training weight with 5 kg step increments
- Reproducible scaled positioning
- Start position adjustment from the training position
- Height-adjustable back pad
- Stepless pelvic fixation pads adjustment
- Adjustable leg pad with easy-entry system
- Foot bar
- Darth frost cover with surface for storage
- Training panel with smart operating information on the device
Lateral Flexion
Item No. 10705700
Specification
- Strength training for trunk
- Tested safety in accordance with the European Medical Device Regulation (MDR)
- 0 to 80 kg training weight with 5 kg step increments
- Reproducible scaled positioning
- Start position adjustment from the training position
- Seat height adjustment
- Stepless trunk fixation pad adjustment
- Knee pads
- Darth frost cover with surface for storage
- Training panel with smart operating information on the device
Butterfly/Butterfly reverse
Item No. 10701800
Specification
- Strength training for chest and back
- Tested safety in accordance with the European Medical Device Regulation (MDR)
- 0 to 80 kg training weight with 5 kg step increments
- Reproducible scaled positioning
- Start position adjustment from the training position
- Seat height adjustment
- Lever arm width adjustment
- Darth frost cover with surface for storage
- Training panel with smart operating information on the device

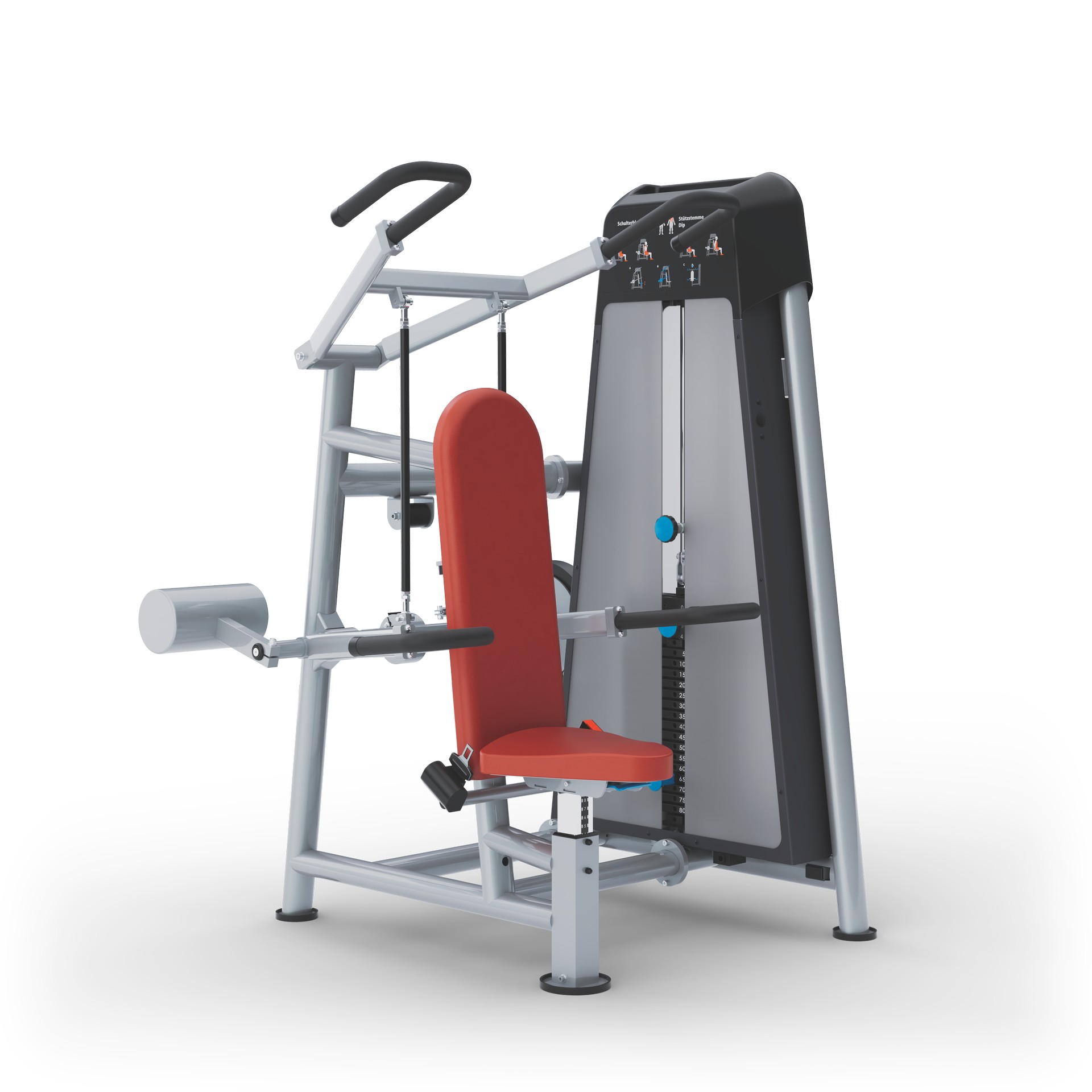

Pulldown/Dip
Item No. 10701100
Specification
- Strength training for shoulders and arms
- Tested safety in accordance with the European Medical Device Regulation (MDR)
- 0 to 80 kg training weight with 5 kg step increments
- Reproducible scaled positioning
- Seat height adjustment
- Flexible grip positions for exercise variations
- Darth frost cover with surface for storage
- Training panel with smart operating information on the device
Chest Press/Rowing
Item No. 10701500
Specification
- Strength training for chest and back
- Tested safety in accordance with the European Medical Device Regulation (MDR)
- 0 to 80 kg training weight with 5 kg step increments
- Reproducible scaled positioning
- Start position adjustment from the training position
- Seat height adjustment
- 2-step foot bar
- Flexible grip positions for exercise variations
- Darth frost cover with surface for storage
- Training panel with smart operating information on the device
proxotrain
Item No. 10184120
Specification
- Planning and control of strength and endurance training
- Comprehensive documentation of test and training results
- Test/retest comparison
- Right/left comparison
- Agonist/antagonist comparison
- Automated, progressive training planning
- Notice of ongoing training plans
- Message function to the patient in connection with the Infopoint
Workoutpoint Stand
Item No. 14103500
Specification
- Colored, high-resolution 8“ touchscreen
- To carry out targeted functional movement training
- Independent patient use
- 150 functional exercises from the areas of strengthening, stretching, coordination and warm-up
- Free exercises are displayed via short video incl. short description
- Use in conjunction with the proxotrain software
- To implement a planned training with RFID or chip card
- The results of the exercises are read into the proxotrain software with documentation after the end of the training
Workoutpoint Wall
Item No. 14111500 (RFID)
Specification
- Colour, high-resolution 21.56" touchscreen monitor with flexible wall mount
- To carry out targeted functional movement training
- Independent patient use
- 150 functional exercises from the areas of strengthening, stretching, coordination and warm-up
- Free exercises are displayed via short video incl. short description
- Use in conjunction with the proxotrain software
- To implement a planned training with RFID or chip card
- The results of the exercises are read into the proxotrain software with documentation after the end of the training
Special product features
- Tested safety in accordance with the European Medical Device Regulation (MDR)
- Fine weight gradations of 1 or 2kg
- Well-thought-through details such as a sliding lumbar support cushion make daily life easier
- User-friendly thanks to “Easy Blue Pins” adjustment aids
- Ultrasound measuring sensors
- Integration into training control software (optional)
