Medical training therapy


From therapeutic training to health-promoting sports: A physiotherapy practice with well-thought-out MTT equipment will be able to rebuild patients’ strength, endurance, mobility and coordination according to personal goals, allowing them to recover and get fit quickly after injuries, operations, slipped discs or other orthopaedic limitations.

Whether it's pulleys, benches or couches: all proxomed devices allow individually designed training. We support you in offering your patients all phases of an individually tailored muscular development programme, from early functional treatment to full exertion.

In this, we rely on a harmonious overall concept offering economical solutions to practices of all sizes, that will also stand up to scrutiny by funding agencies thanks to its proven successes and reproducible results.

Suitable for all training phases

Training that gives the right impetus for every phase of muscle buildup: the weights in our MTT exercise machines are so finely gradated that the right load can always be selected.

They are smooth-running with minimal friction, guaranteeing the most pleasant training experience possible. This creates the ideal conditions for therapeutic success.

Our devices can come with a single or triple pulley system. We offer them for all spatial configurations: As a standard model with a moving stand or a wall-mounted model for smaller practices. The wall-mounted versions can come with an optional sliding mount that allows them to be moved 2.5 metres vertically.

Our training benches ensure variation in therapeutic exercises. With numerous adjustment options, you have everything you need to ensure individual positioning. Thus, you can use various weights-based training options, for example for training the lumbar musculature.

compass MTT Einzelprodukte

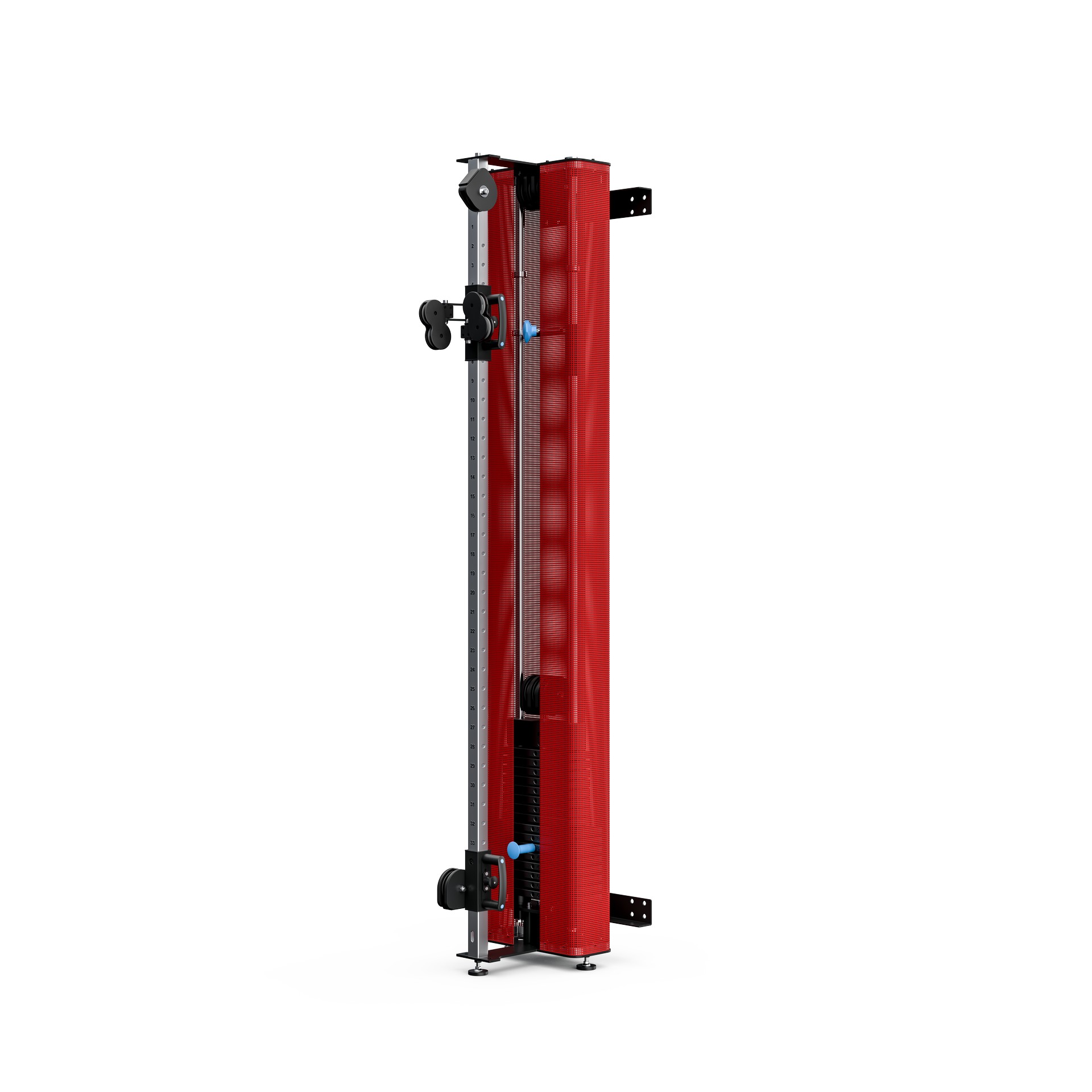

S1 Med

Item No. 10120100

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • Redirection: 6 transfers
  • 1/3 effective weight
  • Range rope exits: approx. 40-195 cm (adjustment in 5 cm steps)
  • Range of motion: approx. 450 cm (both rope exits)
  • 3 ball bearing rollers
  • Maintenance-free guide bushes
  • Wall bracket
  • L-shaped handles
  • Dimensions (L/W/H): 55-91/37-68/214-237 cm
  • Training weight: 60 kg
    • 20 kg á 2,5 kg (8x)
    • 40 kg á 5 kg (8x)
  • Total weight: 80 kg
  • "Free Standing" Modification Kit
  • Shifting Device
  • Attachment for lat pulldown, standard version
  • Attachment for lat pulldown, short version
  • Lat bar (chrome) with double eyelet
  • Special gallow height S1
  • Lifting technology
  • Range of motion limiter
  • Hand grip for stabilization
  • Crus role (training the lifting muscles)
  • Triceps/biceps bar (chrome)
  • Ankle cuff special with loop
  • Leather cuff for ankle
  • Velcro strap, padded ankle cuff, 40 cm
  • Velcro strap, padded ankle cuff, 60 cm
  • Velcro strap, padded ankle cuff, 80 cm
  • Additional L-shaped handles

S3 Med

Item No. 10120300

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • Redirection: direct pull
  • Range rope exits: rope exit approx. 240 cm
  • Range of motion: approx. 130 cm vertically
  • Ball bearing rollers
  • Maintenance-free guide bushes
  • Wall bracket
  • Lat bar 120 cm
  • Dimensions (L/W/H): 91/37-68/223-238 cm
  • Training weight: 60 kg
    • 20 kg á 2,5 kg (8x)
    • 40 kg á 5 kg (8x)
  • Total weight: 80 kg
  • Additional lat bar
  • Special gallow height S3
  • Range of motion limiter
  • Hand grip for stabilization
  • Triceps/biceps bar (chrome)
  • Ankle cuff special with loop
  • Leather cuff for ankle
  • Velcro strap, padded ankle cuff, 40 cm
  • Velcro strap, padded ankle cuff, 60 cm
  • Velcro strap, padded ankle cuff, 80 cm
  • L-shaped handles

Shown in frame color RAL 9006 white aluminum

Back Trainer Combi

Item No. 10113700

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • Training of the back extensor muscles and lateral core muscles
  • Footplate with leg pad for active fixation
  • Height-adjustable pelvic cushion via grid mechanism
  • Handles for positioning aid
  • Lateral pelvic fixation pad
  • Roller mechanism and handle for easier relocation
  • Dimensions (L/W/H): 130/71/112-154 cm
  • Total weight: 57 kg
  • User weight: max. 145 kg

Shown in frame color RAL 9006 white aluminum

Crunch Bench

Item No. 10113300

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • Training the front and oblique abdominal muscles
  • Height adjustment of the lying surface via notches (gas pressure spring supported)
  • Handles for positioning aid
  • Height-adjustable lower leg rest
  • Roller mechanism for easier change of location
  • Dimensions (L/W/H): 145/68/120 cm
  • Total weight: 55 kg
  • User weight: max. 145 kg

Shown in frame color RAL 9006 white aluminum

Bench, adjustable without foot rest

Item No. 10093000

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • Backrest adjustable from 0° to 80°
  • Seat can be adjusted 8 times
  • Dimensions (L/W/H): 137/51/50-140 cm
  • Total weight: 42 kg
  • User weight: max. 145 kg

Shown in frame color RAL 9006 white aluminum

Professional Press Bench, Flat

Item No. 10092700

Specification

  • Dimensions (L/W/H): 180/127/122 cm
  • Dimensions (L/W/H): 180/127/122 cm
  • Total weight: 55 kg
  • User weight: max. 145 kg

Shown in frame color RAL 9006 white aluminum

Flat Bench

Item No. 10092900

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • Dimensions (L/W/H): 130/51/52 cm
  • Total weight: 25 kg
  • User weight: max. 145 kg

Shown in frame color RAL 9006 white aluminum

Training Bench 3-part

Item No. 10004100

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • Seat adjustable in 2 steps
  • Infinitely adjustable backrest
  • Additional cushions can be folded down
  • Dimensions (L/W/H): 105/32/53 cm
  • Total weight: 30 kg
  • User weight: max. 145 kg

The compass MTT advantages in overview

Your benefits


Pulleys

  • KGG ordinance implemented in specifying the device equipment
  • A basic feature of all therapeutic institutions
  • A highly versatile device, as the direction of pull can be adjusted



Training benches

  • A diverse range of therapeutic exercises for the entire skeletal musculature

For your needs


Pulleys

  • Easy to use and long-lived
  • Rapid adjustment
  • Single or triple pulley system
  • Automatic training of trunk stabilisers
  • Robust, sustainable and Öko-Tex 100 certified outdoor covering material

Training benches

  • The weights-based training can be particularly effective and targeted for maintaining and strengthening the lumbar musculature.
  • Training benches come with padding in a variety of different colours, if desired with special stitching, to match the furnishings of your practice.

Special product features


Pulleys

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • High-quality workmanship
  • Free-standing or wall-mounted, for all spatial configurations
  • Ball-bearing mounted castors
  • Maintenance-free guide bushings
  • Full range of accessories

Training benches

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • Numerous adjustment options ensure individual positioning

Do you have questions about our products, or would you like to arrange a date for personal consultation?
