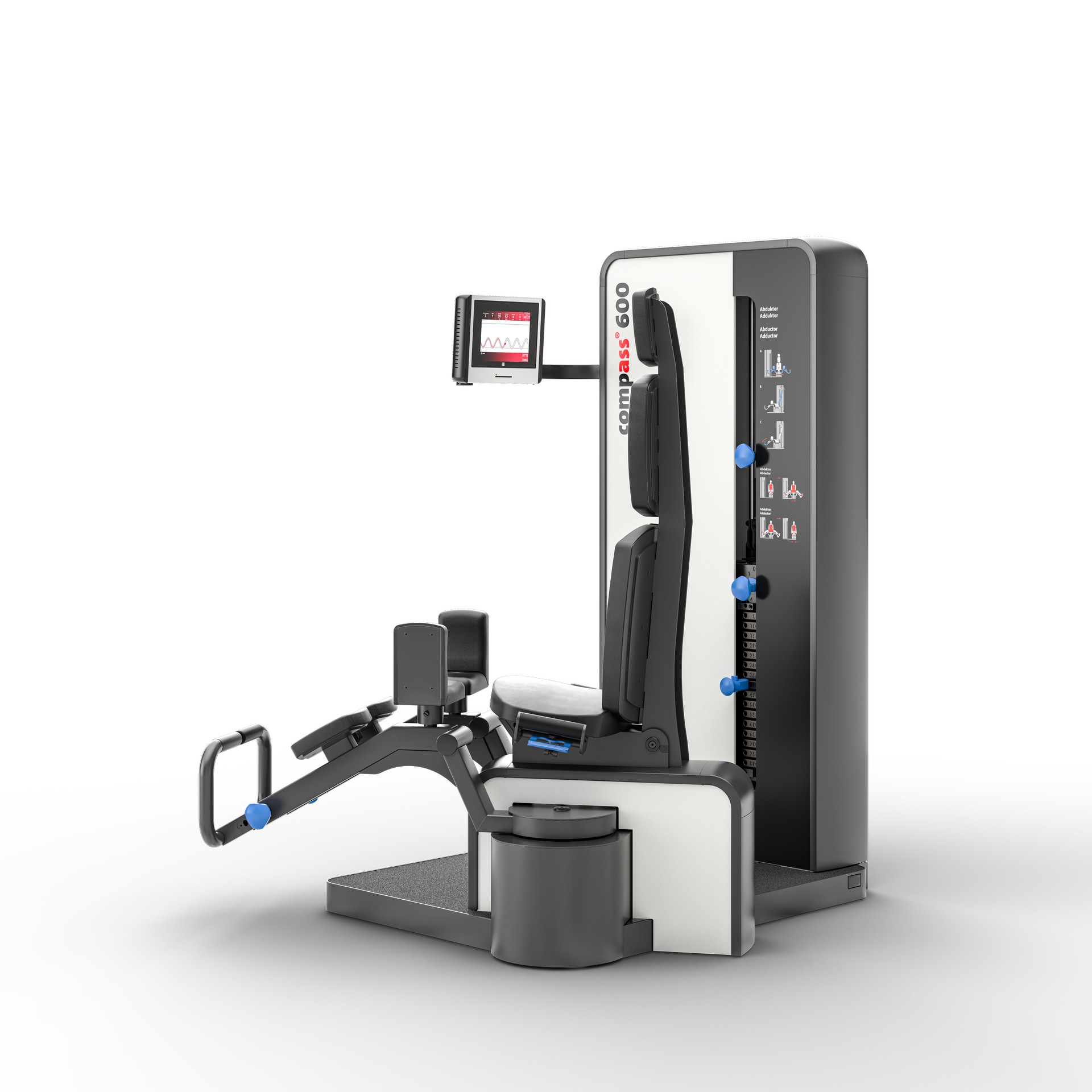

compass 600 - Ab-/Adduction

Illustration including optional equipment

Frame

RAL 7021
Black grey frosted

Casing

RAL 9006
White aluminium

Upholstery

Optional equipment for extra charge

To the Online-Showroom

*The colours shown may differ from actuality depending on the monitor and screen resolution

Specification

Strength training for hips
Tested safety in accordance with the European Medical Device Regulation (MDR)
smart assist for training control
Integrated RFID
Visual feedback strength training with individual curves
Ultrasonic sensors for weight detection
0 to 84 kg training weight with 1 kg step increments
Reproducible scaled positioning
Start position adjustment from the training position
Stepless backrest adjustment
Knee support pad adjustment for both adduction and abduction
Foot support bar adjustment
Weight block cover for protection

Technical Data

Dimensions (L/W/H): 141-205/110-180/165 cm
Total weight block: 80 kg (16 x 5 kg)
Total weight: up to 384 kg
User weight: max. 200 kg
Energy consumption standby: 0,0035 kWh
Energy consumption in operation: 0,018 kWh/0,019 kWh* (*=Fully equipped (position and pulse sensors))

Options

Isometric measurement system
Position and pulse sensor
Range of motion limiter
Foot support bar adjustment
100 kg weight block (20 x 5 kg)
Lordosis pad

Documents

User manual compass 600

User manuals for older or discontinued devices are available free of charge on request from our service department at service@physiomed-group.com. Please state the exact device name incl. serial number and your address. We will send them to you.
