Devices for functional, medical endurance training.


Particularly high demands are made of Medical Training Therapy (MTT) in rehabilitation. For this reason, we have used the experience of our production partner ERGO-FIT and developed a system of exemplary user-friendliness: our kardiomed 700 devices.

All kardiomed 700 devices have a high-resolution touchscreen. They are intuitive to use and the high legibility of the display makes it easier to use for older patients or those with restricted mobility.

Modern technology for effective training

Training control and documentation are as important for patient success as they are for keeping your institution running efficiently. Our kardiomed 700 is fitted with the proxomed chip card system as standard. This ensures reliable data transfer to the central proxOS data interface as well as to our proxotrain software.

The system ensures exact detail in documentation and allows optimal training plans to be created thanks to its evaluation tools.

kardiomed 700 products

Basic Cycle

Item No. 10273000

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • High resolution color touchscreen with bio-feedback
  • Integrated chip card system
  • USB connection
  • Horizontal and vertical seat adjustment
  • Vertical handlebar adjustment
  • Deep passage for easy training positioning
  • Bottle holder
  • Transport rollers
  • Quick start
  • Heart rate controlled program
  • Performance-controlled program
  • Performance-sensitive program
  • Isokinetics program
  • Cardio training
  • Fat metabolism
  • Selection of predefined load profiles
  • Dimensions (L/W/H): 118/63/145 cm
  • Total weight: 66 kg
  • User weight: max. 180 kg
  • Supply voltage 220 - 240 V/48 - 60 Hz
  • Performance range: Increments every 5 watts
    • 15 - 600 watt (speed independent, speed dependent)
    • Speeds range 20 - 120 rpm
  • RFID system/wireless network
  • Medical RS-232-Isolator including cable
  • Medical LAN Isolator
  • Adjustable crank (Pedals length adjustment)
  • Polar Heart Rate Receiver coded
  • Polar Heart Rate Transmitter coded set
  • Software proxotrain
  • IPN Test-Suite – proxomed edition

Comfort Cycle

Item No. 10273200

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • High resolution color touchscreen with bio-feedback
  • Integrated chip card system
  • USB connection
  • Horizontal seat adjustment
  • Deep passage for easy training positioning
  • Bottle holder
  • Transport rollers
  • Quick start
  • Heart rate controlled program
  • Performance-controlled program
  • Performance-sensitive program
  • Isokinetics program
  • Cardio training
  • Fat metabolism
  • Selection of predefined load profiles
  • Dimensions (L/W/H): 160/53/127 cm
  • Total weight: 80 kg
  • User weight: max. 200 kg
  • Supply voltage 220 - 240 V/48 - 60 Hz
  • Performance range: Increments every 5 watts
    • 15 - 600 watt (speed independent, speed dependent)
    • Speeds range 20 - 120 rpm
  • RFID system/wireless network
  • Medical LAN Isolator
  • Adjustable crank (Pedals length adjustment)
  • Polar Heart Rate Receiver coded
  • Polar Heart Rate Transmitter coded set
  • Software proxotrain

Upper Body Cycle

Item No. 10273600

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • High resolution color touchscreen with bio-feedback
  • Integrated chip card system
  • USB connection
  • Foldable seat for training with wheel chair
  • Training in forward and backward movements
  • Length-variable crank arms with innovative ball grip
  • Diagonally or parallel handlebar positions for different training
  • Stepless height adjustment for training in the sitting or standing position
  • Transport rollers
  • Quick start
  • Heart rate controlled program
  • Performance-controlled program
  • Performance-sensitive program
  • Isokinetics program
  • Cardio training
  • Fat metabolism
  • Selection of predefined load profiles
  • Dimensions (L/W/H): 166/63/152 cm
  • Total weight: 111 kg
  • User weight: max. 200 kg
  • Supply voltage 220 - 240 V/48 - 60 Hz
  • Performance range: Increments every 5 watts
    • 15 - 400 watt (speed independent)
    • Speeds range 20 - 120 rpm
  • RFID system/wireless network
  • Medical LAN Isolator
  • Hand crank with ring handle
  • Polar Heart Rate Receiver coded
  • Polar Heart Rate Transmitter coded set
  • Software proxotrain

Cross Walk

Item No. 10273100

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • High resolution color touchscreen with bio-feedback
  • Integrated chip card system
  • USB connection
  • Training in forward and backward movements
  • Bottle holder
  • Transport rollers
  • Quick start
  • Heart rate controlled program
  • Performance-controlled program
  • Performance-sensitive program
  • Fat metabolism
  • Selection of predefined load profiles
  • Dimensions (L/W/H): 185/68/168 cm
  • Total weight: 105 kg
  • User weight: max. 200 kg
  • Supply voltage 220 - 240 V/48 - 60 Hz
  • Performance range: Increments every 5 steps
    • 15 to 200 load levels (speed independent)
    • Speeds range 15 - 200 steps/min.
  • RFID system/wireless network
  • Medical LAN Isolator
  • Polar Heart Rate Receiver coded
  • Polar Heart Rate Transmitter coded set
  • Software proxotrain

Cross Walk S

Item No. 10273500

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • High resolution color touchscreen with bio-feedback
  • Integrated chip card system
  • USB connection
  • Gentle form of training in half-lying position, suitable for overweight users
  • Neck Pad
  • Training in forward and backward movements
  • Bottle holder
  • Transport rollers
  • Quick start
  • Heart rate controlled program
  • Performance-controlled program
  • Performance-sensitive program
  • Fat metabolism
  • Selection of predefined load profiles
  • Dimensions (L/W/H): 200/100/157 cm
  • Total weight: 132 kg
  • User weight: max. 200 kg
  • Supply voltage 220 - 240 V/48 - 60 Hz
  • Performance range:
    • 1 - 29 load levels respectively 25 - 400 watts (speed independent, speed dependent)
    • Speeds range 20 - 120 rpm
  • RFID system/wireless network
  • Medical LAN Isolator
  • Polar Heart Rate Receiver coded
  • Polar Heart Rate Transmitter coded set
  • Software proxotrain

Stair

Item No. 10273400

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • High resolution color touchscreen with bio-feedback
  • Integrated chip card system
  • USB connection
  • Independent pedal system
  • Generous, continuous safety handles
  • Bottle holder
  • Transport rollers
  • Quick start
  • Heart rate controlled program
  • Performance-controlled program
  • Performance-sensitive program
  • Fat metabolism
  • Selection of predefined load profiles
  • Dimensions (L/W/H): 105/76/181 cm
  • Total weight: 93 kg
  • User weight: max. 200 kg
  • Supply voltage 220 - 240 V/48 - 60 Hz
  • Performance range: Increments every 5 stairs/min
    • 15 - 155 intensity levels speed controlled
    • Speeds range 15 - 155 steps/min.
  • RFID system/wireless network
  • Medical LAN Isolator
  • Polar Heart Rate Receiver coded
  • Polar Heart Rate Transmitter coded set
  • Software proxotrain

Mill Tour/Alpin

Item No. 10273700 Mill Tour
Item No. 10273300 Mill Alpin

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • High resolution color touchscreen with bio-feedback
  • Integrated chip card system
  • USB connection
  • Emergency stop button
  • Safety lanyard with magnet (emergency stop function)
  • Continuous safety hand rail
  • Very flat entry with just under 20 cm
  • Bottle holder
  • Transport rollers
  • Quick start
  • Heart rate controlled program
  • Performance-controlled program
  • Performance-sensitive program
  • Fat metabolism
  • Selection of predefined load profiles
  • Dimensions (L/W/H): 210/99/140 cm
  • Total weight: 235 kg
  • User weight: max. 200 kg
  • Supply voltage 220 - 240 V/48 - 60 Hz
  • Performance range:
    • 0,2 - 25 km/h
    • Increments 0,1 km/h
    • Inclination -5 % - +15 % (Tour)
    • Inclination 0 % - +20 % (Alpin)
  • RFID system/wireless network
  • Medical RS-232-Isolator including cable
  • Medical LAN Isolator
  • Polar Heart Rate Receiver coded
  • Polar Heart Rate Transmitter coded set
  • Software proxotrain
  • IPN Test-Suite – proxomed edition

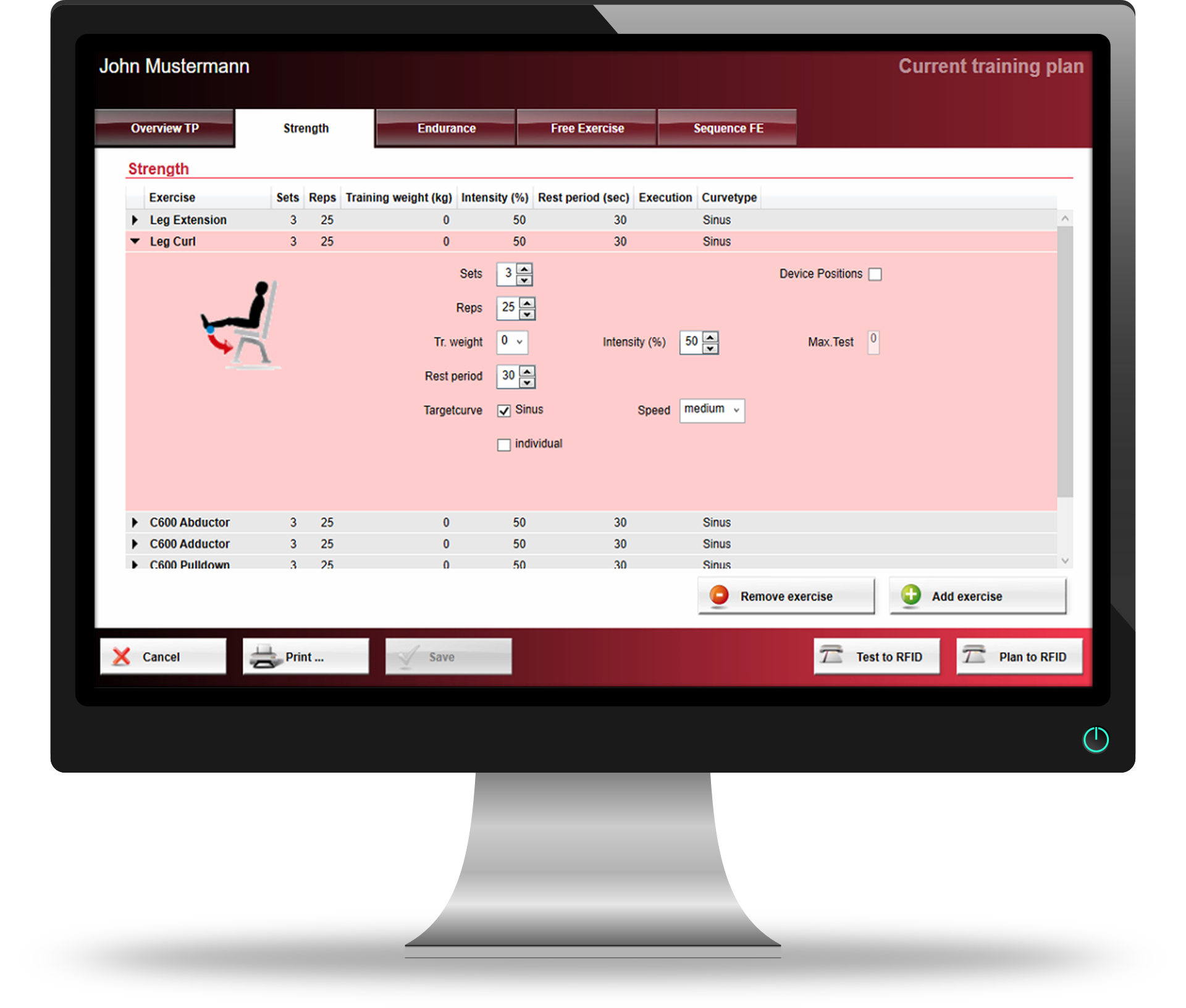

proxotrain

Item No. 10184120

Specification

  • Planning and control of strength and endurance training
  • Comprehensive documentation of test and training results
  • Test/retest comparison
  • Right/left comparison
  • Agonist/antagonist comparison
  • Automated, progressive training planning
  • Notice of ongoing training plans
  • Message function to the patient in connection with the Infopoint

IPN-Test Suite

Item No. 10150300

Specification

  • Special software for evaluating endurance performance
  • IPN-Test as a scientifically verified, valid test procedure for ergometers and treadmills
  • Selection of the different test procedures (cycling, running, walking) depending on the preference, target group or previous experience of the patient/customer
  • Short versions of the IPN-Test as a screening method, 4 or 6 minutes depending on performance
  • Submaximal, maximal test procedures for determining cardiovascular performance
  • Configuration of free test profiles

kardiomed 700 advantages in overview

Your benefits


  • Endurance training in all areas of rehabilitation
  • Mobilisation training
  • Warm-up for further training

For your needs


  • Very comfortable to use
  • Electronic documentation
  • Electronic training control
  • Interface with proxomed software modules
  • Heart frequency monitoring/control (optional)
  • Free cross-over with ergometers

Special product features


  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • Link with IPN test suite (optional)
