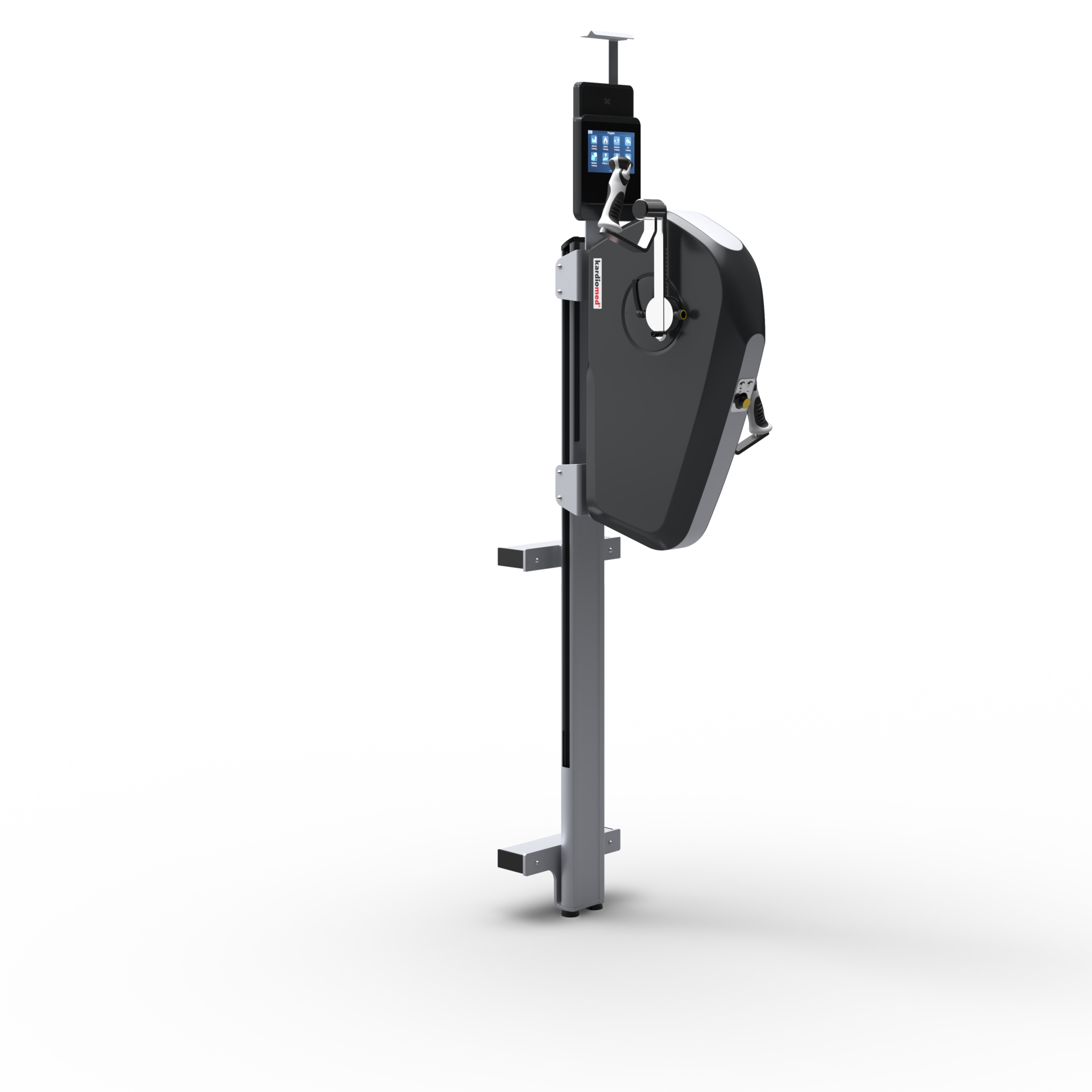

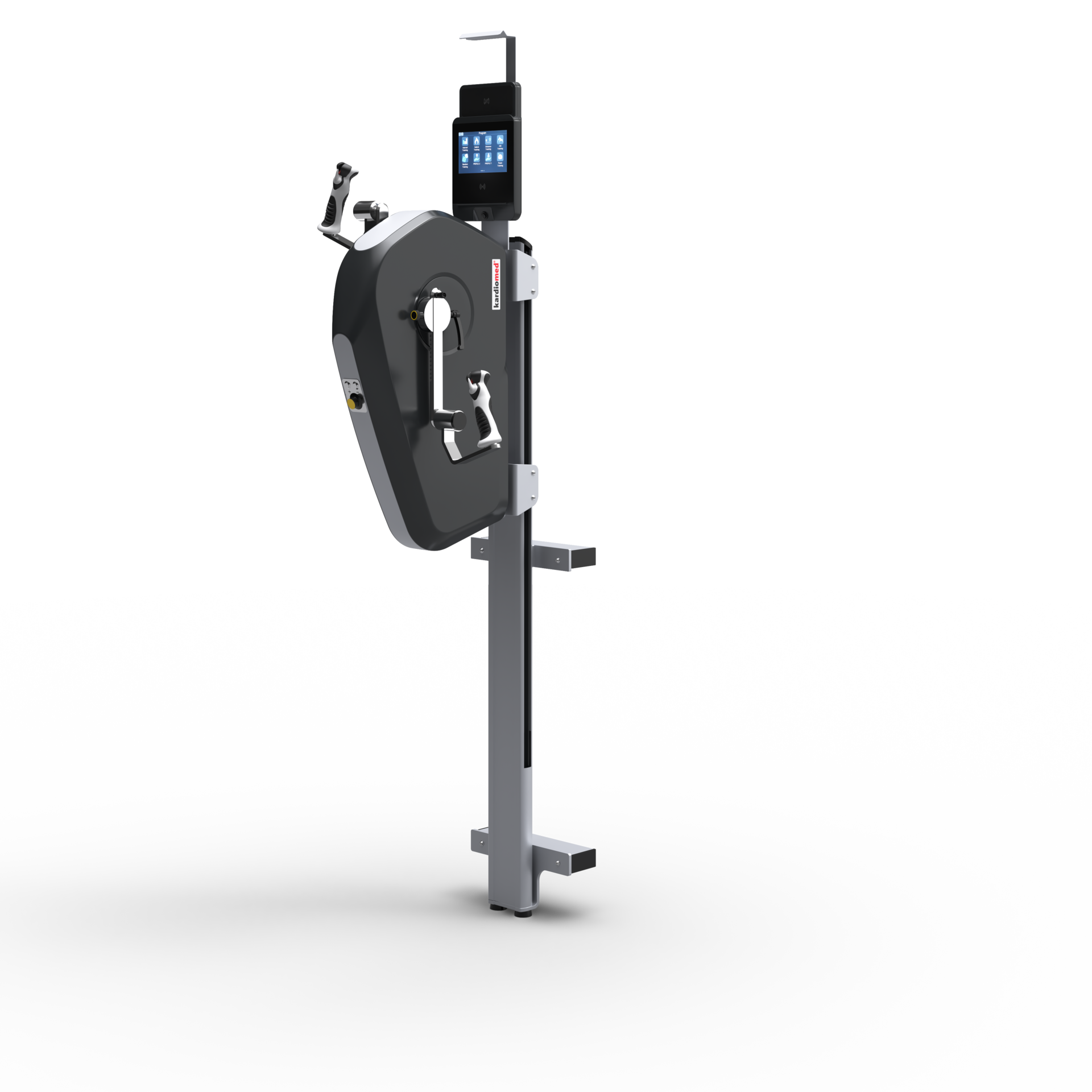

kardiomed 540 - upper body cycle Wall


  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • No power supply is needed
  • Integrated different training programs
  • Durable, clear 7" touch display
  • Interference-free Polar® hybrid heart rate display with automatic pairing (5 kHz and Bluetooth Low Energy)
  • Training in standing or sitting position
  • Forward and backward movement possible
  • Length-adjustable crank with synchronous/asynchronous mode
  • Gas pressure-assisted, stepless height adjustment of the drive unit for a sitting or standing training position
  • Ergonomic Leki handles with preparation for clip attachment
  • Quickstart
  • Watt (Time training)
  • Pulse training
  • Dimensions (L/W/H): 63/56/155 cm
  • Total weight: 48 kg
  • User weight: unrestricted
  • Mains-independent operation
  • Performance range: Increments every 5 watts
    • 15 - 500 watt rpm-independent
    • 15 - 1.000 watt rpm-dependent
  • Speed range 15 - 140 rpm
  • performance package (Qi charging option, max. 550 watts, with optional power supply from 7 watts)
  • connect package for system integration (RFID/Wireless network)
  • programme package (additional programmes, programme memory)
  • all in package (performance + connect + program package)
  • Coded Polar Transmitter Set
  • Leki Trigger Glove or Leki Trigger Strap

User manuals for older or discontinued devices are available free of charge on request from our service department at service@proxomed.com. Please state the exact device name incl. serial number and your address. We will send them to you.
