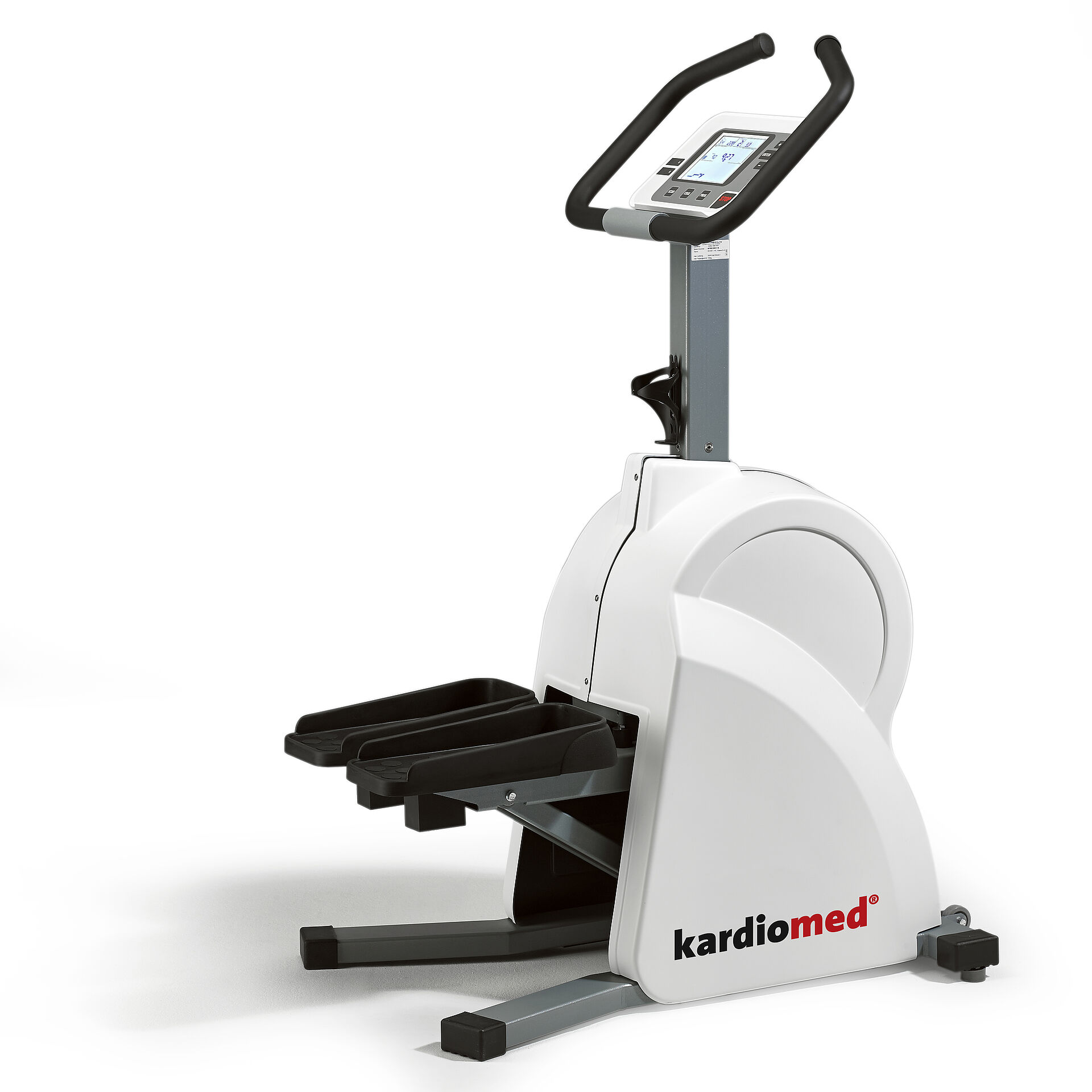

kardiomed 540 - stair

Frame

RAL 9006
White aluminium

Casing

RAL 7016
Anthracite grey

*The colours shown may differ from actuality depending on the monitor and screen resolution

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • No power supply is needed
  • Integrated different training programs
  • Durable, clear 7" touch display
  • Interference-free Polar® hybrid heart rate display with automatic pairing (5 kHz and Bluetooth Low Energy)
  • Automatic weight detection for precise calculation of performance
  • Pedal-independent system
  • Damped pedal suspension
  • Isokinetic mode of operation for a falling speed of 4 to 27 m/min
  • Quickstart
  • Watt (Time training)
  • Pulse training
  • Dimensions (L/W/H): 102/73/160 cm
  • Total weight: 79 kg
  • User weight: max. 150 kg
  • Mains-independent operation
  • Performance range: 4 to 27 m/min sink rate
  • performance package (Qi charging option)
  • connect package for system integration (RFID/Wireless network)
  • programme package (additional programmes, programme memory)
  • all in package (performance + connect + program package)
  • Coded Polar Transmitter Set

User manual kardiomed 540

User manuals for older or discontinued devices are available free of charge on request from our service department at service@physiomed-group.com. Please state the exact device name incl. serial number and your address. We will send them to you.
